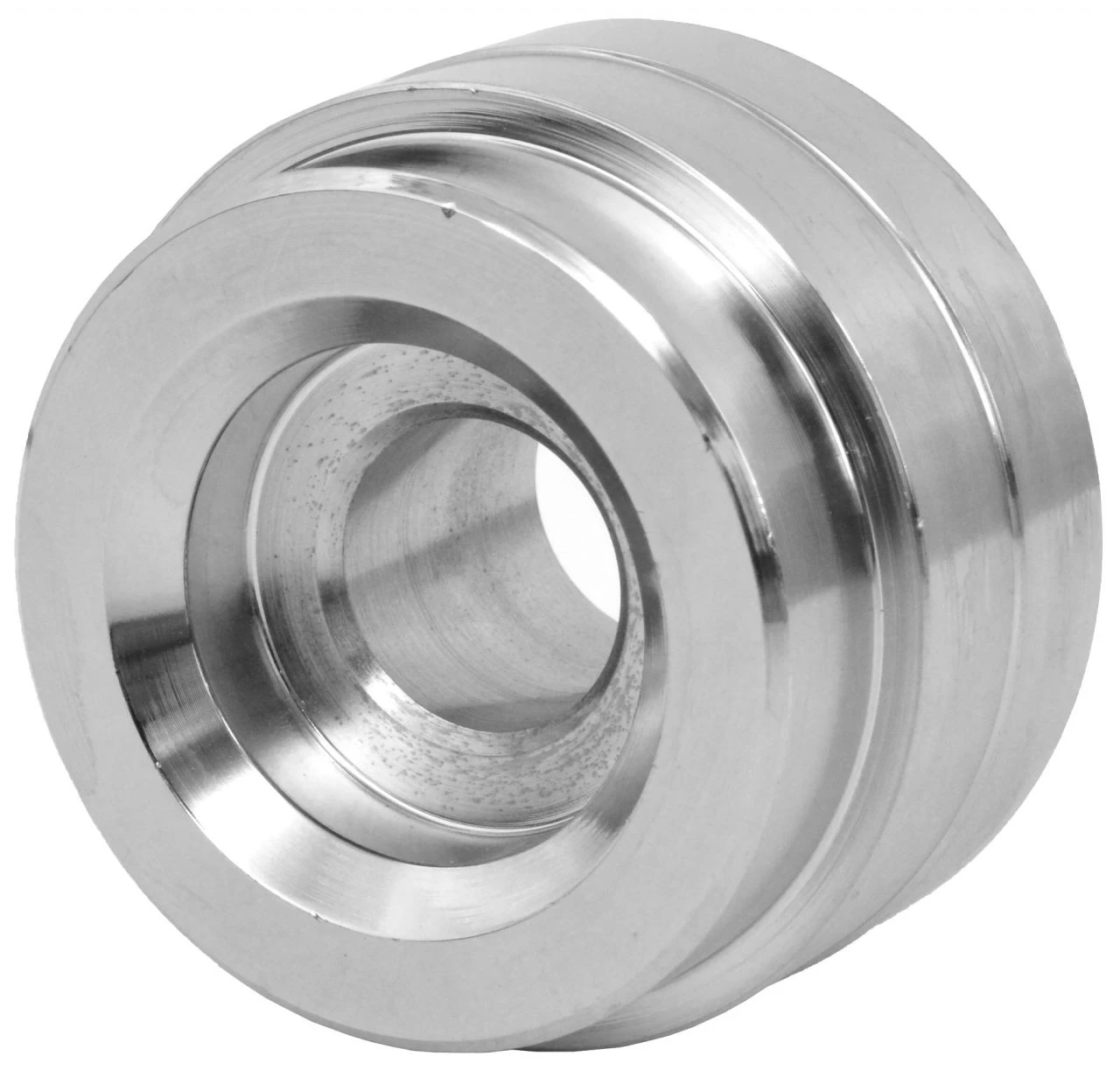

The Cyclus press ring is suitable for pressing headset shells into a 1 1/2″ head tube. It is designed for use with the quick-release nut. This guarantees professional, safe and above all fast working.

Professional and safe: The Press Piston 1 1/2″ for Cyclus Press-in Tools

The press-in tool is used for simultaneously pressing the upper and lower headset shell into the head tube of the frame.
For professional use, you need the appropriate press-in spindle for head sets, including the appropriate counter-support. Ideally, this should be the quick-release nut.

---

Preparation

• Screw the trapezoidal thread spindle with the side, which has a fine thread, into the tool holder.
• Put the thrust bearing and then one of the press bushes on the spindle.

Use

• Place the top head cup on the press bush and insert the tool into the steerer tube.
• Place the bottom head cup on the other press bush and put both of them on the spindle of the tool. Afterwards screw the threaded sleeve on the trapezoidal therad of the spindle. Rotate the tool holder and start to press the head cups.
• Pay attention, that the cups are not getting jammed during the work.
• Before you begin to press the head cups, check the diameter tolerance of the cup seating in the frame. You might need to correct the size by milling and facing the steerer tube first. Use corresponding head tube facing tool (code: 10051995).

Tip

Put some lubricant on the head cups to be pressed. It will make the work easier and safe the tool.

---

Scope of delivery

• 1 x Cyclus Plunger 1 1/2″ for Press-in Tool
