Cyclus Tools special tool to face 1 1/8″ (34 mm) head tubes. The head tube reamer creates coaxially exact plane cup seats on the head tube.

• max. head tube length: 190mm
• max. milling depth: 15mm
• max. wall tube thickness: 4 mm

---

Scope of delivery

• head tube reamer 1 1/8″ (34mm)
• tool holder
• spindle with thrust bearing, spring and conical guide

Preparation

Install the reamer on the prepared seating of the tool holder. Screw the spindle with conical guide, spring and thrust bearing into the tool holder.

Use

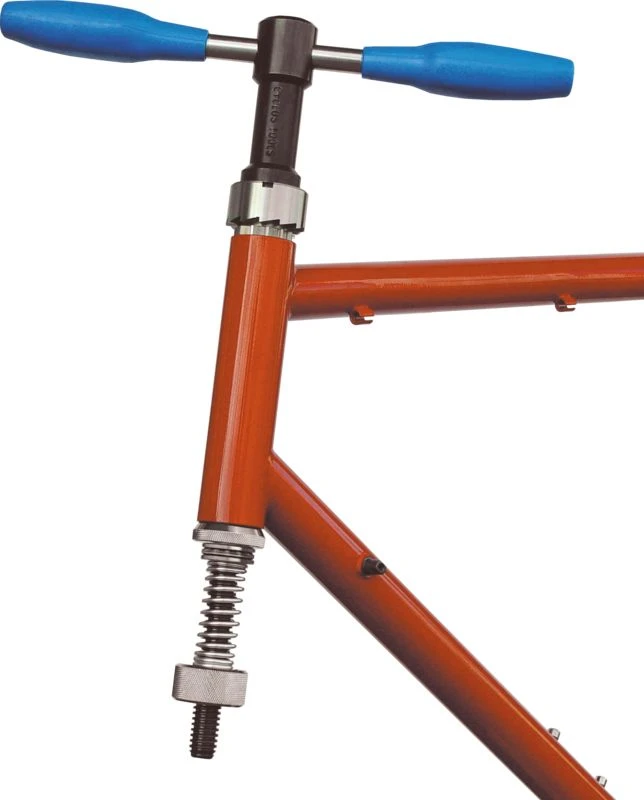

First, remove the conical guide from the spindle. Insert the tool from above into the head tube of the frame. Put the conical guide on the spindle again and apply pressure with the spring. Rotate the tool clockwise. Use cutting oil while working. Continue to rotate clockwise, while taking the tool out of the head tube. Repeat the above steps to ream the bottom side of the head tube.

Tip Before reaming, remove evetually existing chrome plates on the frame, to avoid early abrasion of the reamer. After reaming you might need to remove sharp edges with file. After the use, clean the reamer and keep it in a safe place.
