CYCLUS TOOLS Drop Out Alignment Tool Pair Tools – Frame | Bike-Discount

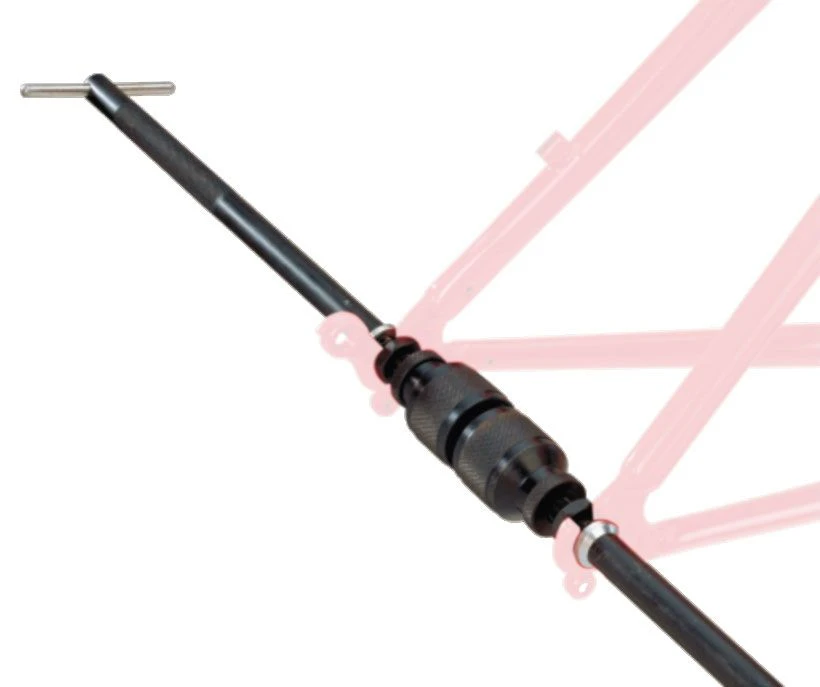

With the Alignment Tool check and correct the exact geometric position of the dropouts of the frame for dropouts.

---

Info

• Check before milling the disc brake mounts and mounting the disk brake alignment of the dropouts.

---

Preparation

• Remove the Wheelset from the frame or fork.

---

Application

• Disconnect the two Alignment Tool into the dropouts on the frame or fork.
• Note the different mounting widths (front: 100mm or rear wheel: 130/135mm).
• Therefore move according to the spacers on the control of honor.
• When properly position the dropouts, the end surfaces of the control plan honors are parallel.
• If differences on the forehead flat surfaces exist, you must judge according to the dropouts.
